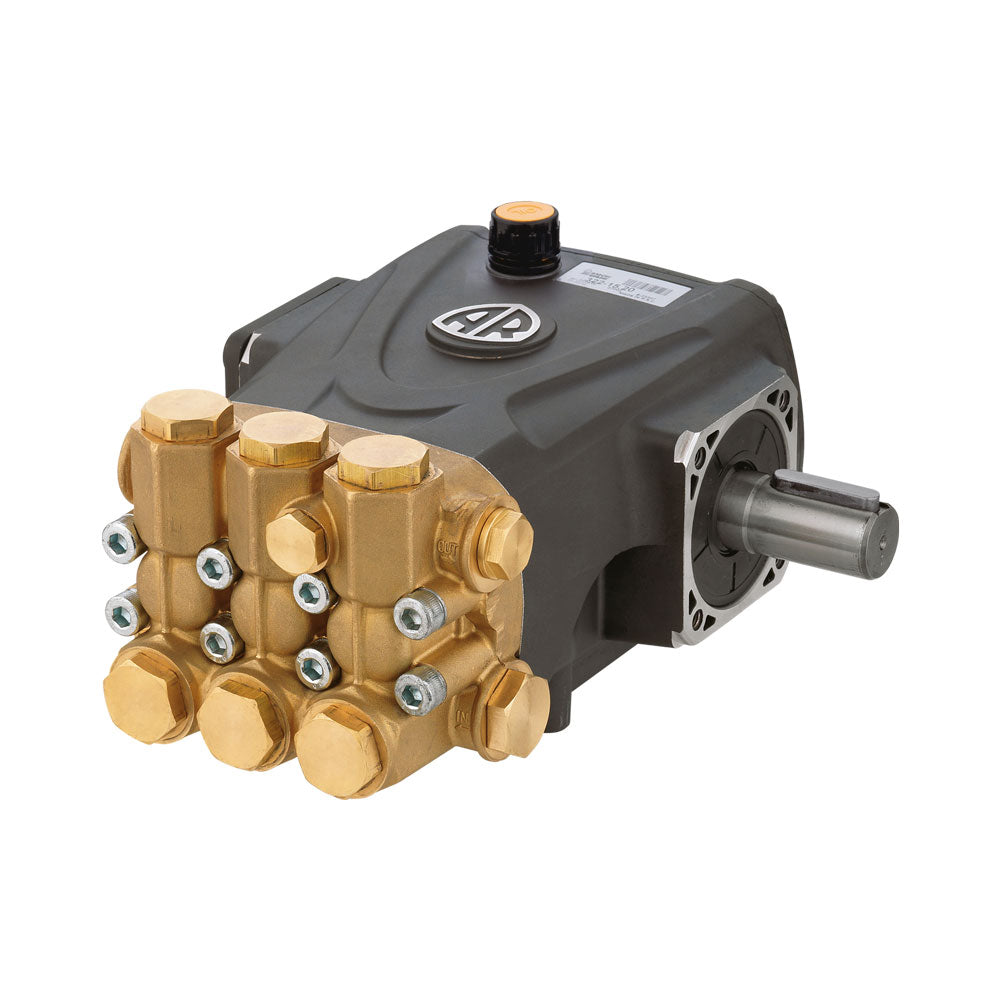

RR 15.20 Annovi Reverberi Solid Shaft Pump – 15 l/min @ 200 Bar, 24mm Shaft for 100 Frame Motors

RR 15.20 Annovi Reverberi Solid Shaft Pump – 15 l/min @ 200 Bar, 24mm Shaft for 100 Frame Motors

Name: RR 15.20 Annovi Reverberi Solid Shaft Pump – 15 l/min @ 200 Bar, 24mm Shaft for 100 Frame Motors
Brand: Annovi Reverberi
SKU: RR15.20
Price: 395.00 GBP
Availability: InStock

SKU : RR15.20

Regular price £395.00

Shipping calculated at checkout.

Quantity

In stock - Ready to ship

15 L/min @ 200 Bar solid shaft AR pump for 100-frame electric motors. 24mm shaft, crank-driven with robust alloy construction. Not compatible with 112-frame or 1" gearbox systems.

Spend £150.00 more to get Free UK Delivery

Estimated delivery time : 20 October - 27 October.

RR 15.20 Annovi Reverberi Solid Shaft Pump – 15 l/min @ 200 Bar, 24mm Shaft for 100 Frame Motors

£395.00

Ask about RR 15.20 Annovi Reverberi Solid Shaft Pump – 15 l/min @ 200 Bar, 24mm Shaft for 100 Frame Motors

Product Details

The RR 15.20 Annovi Reverberi Solid Shaft Pump is a heavy-duty, slow-speed pressure washer pump engineered for electric motor drive systems. With a 24mm solid shaft and running at 1450 RPM, it delivers 15 litres per minute at 200 Bar (3000 PSI), requiring 7.5 HP to reach full performance.

Built for industrial cleaning applications and washdown systems, the RR15.20 features a crankshaft-driven 3-piston volumetric mechanism, hardened steel pump shaft, and a durable die-cast aluminium body with oil sight glass and drain plug for easy maintenance. This model is specifically designed to fit 100 frame electric motors and is not compatible with 112-frame motors or 1″ shaft gearboxes.

Whether you’re replacing an existing pump or building a new system, the RR15.20 offers reliability, serviceability, and excellent performance under pressure.

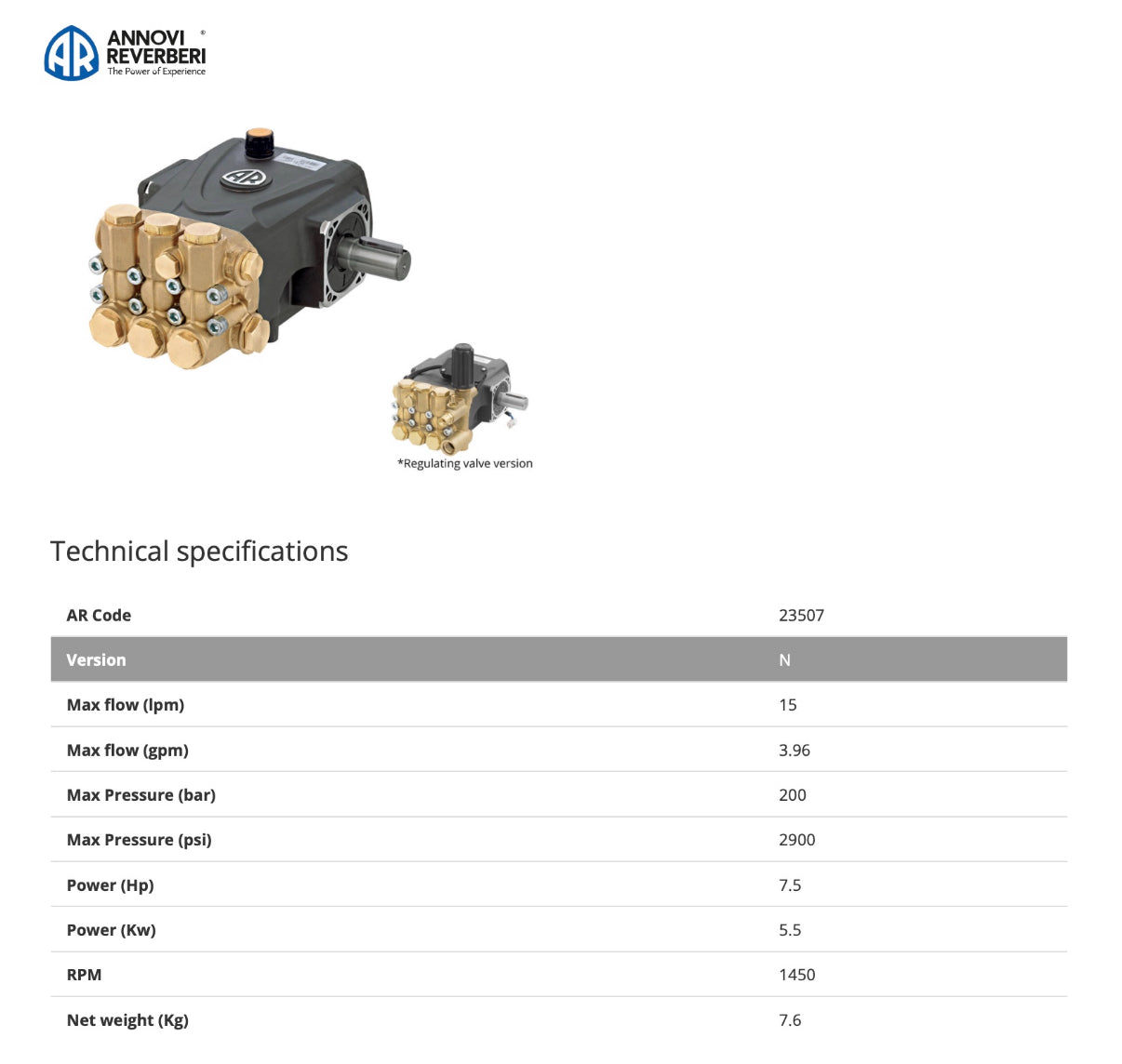

Specifications

Key Specifications

Part No RR15.20
RPM 1450
Shaft Type 24mm solid shaft
Flow Rate 15 L/min
Pressure 200 Bar / 3000 PSI
Power Requirement 7.5 HP
Pump Type 3-piston alternating volumetric
Body Material Die-cast aluminium alloy
Pump Shaft Pressed high-strength steel
Drive Mechanism Crankshaft with connecting rods
Oil Management Rear oil drain plug, oil sight glass, cap with dipstick
Motor Compatibility 100 frame electric motors only
Not Compatible With
112 frame motors (e.g. Code 46-004)
1" gearboxes (e.g. Codes RS500, 1689, PAGB25)

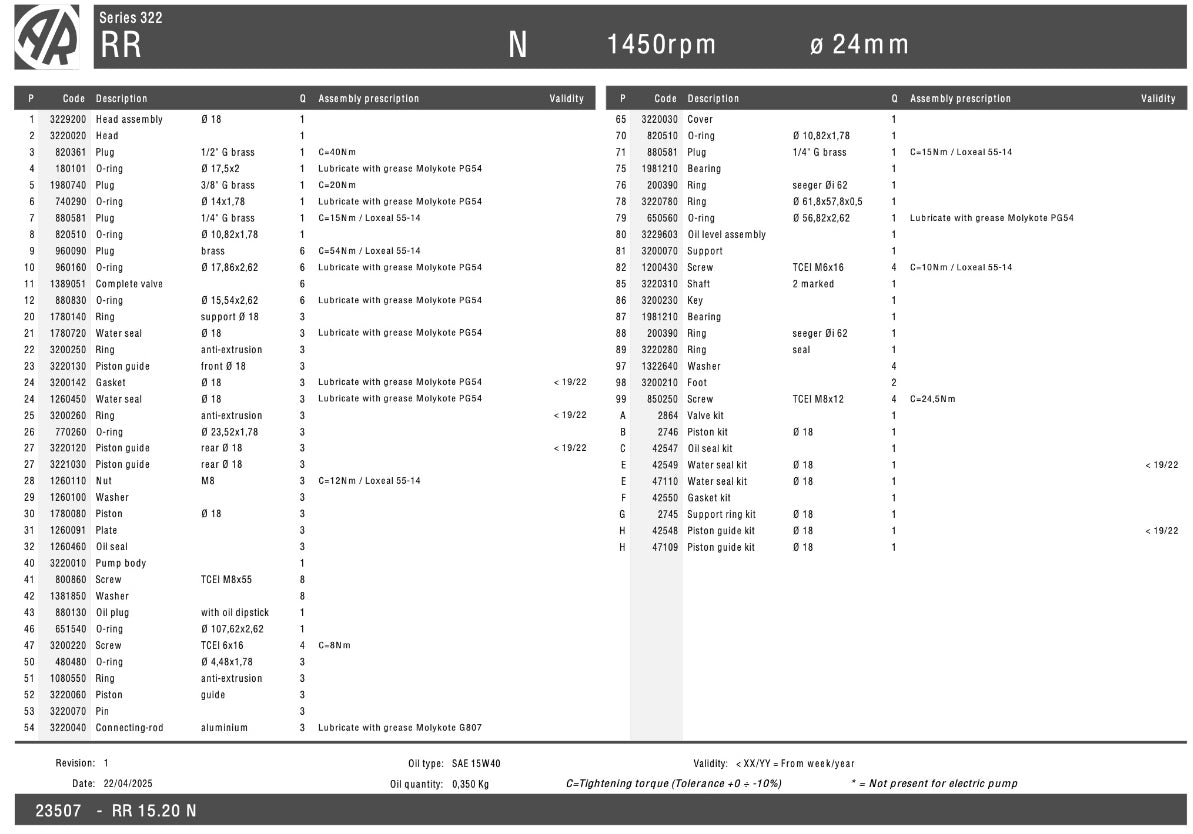

Popular Spares
Valve Kit – Kit 2864
Water Seal Kit (pre-May 2022) – Kit 42549
Water Seal Kit (post-May 2022) – Kit 47110
Oil Seal Kit – Kit 42547
Pistons (x3) – Kit 2746
