XW 30.25 Annovi Reverberi Solid Shaft Pump – 30 l/min @ 250 Bar, 1450 RPM, 24mm Shaft – Part No: XW30.25

XW 30.25 Annovi Reverberi Solid Shaft Pump – 30 l/min @ 250 Bar, 1450 RPM, 24mm Shaft – Part No: XW30.25

Name: XW 30.25 Annovi Reverberi Solid Shaft Pump – 30 l/min @ 250 Bar, 1450 RPM, 24mm Shaft – Part No: XW30.25
Brand: Annovi Reverberi
SKU: XW 30.25
Price: 800.00 GBP
Availability: InStock

SKU : XW 30.25

Regular price £800.00

Shipping calculated at checkout.

Quantity

In stock - Ready to ship

1450 RPM solid shaft pump with 24mm shaft. 30 L/min at 250 Bar. Die-cast aluminium body with oil sight glass and drain. Crank-connecting rod pistons.

Spend £150.00 more to get Free UK Delivery

Estimated delivery time : 20 October - 27 October.

XW 30.25 Annovi Reverberi Solid Shaft Pump – 30 l/min @ 250 Bar, 1450 RPM, 24mm Shaft – Part No: XW30.25

£800.00

Ask about XW 30.25 Annovi Reverberi Solid Shaft Pump – 30 l/min @ 250 Bar, 1450 RPM, 24mm Shaft – Part No: XW30.25

Product Details

The XW 30.25 Annovi Reverberi solid shaft pump is engineered for industrial cleaning units and other high-demand systems. Operating at 1450 RPM, this pump features a robust 24mm solid shaft designed for coupling with electric motors.

Delivering a powerful flow rate of 30 litres per minute at 250 Bar (3600 PSI), it requires approximately 19 HP to operate at full pressure. The pump utilizes a 3-piston alternating volumetric design driven by a crank-connecting rod mechanism, ensuring efficient and consistent performance.

Constructed with a die-cast aluminium alloy pump body and cover, the XW30.25 is built for durability and corrosion resistance. The rear cover includes an oil drain outlet and sight glass for straightforward maintenance, complemented by a cap with a dipstick for easy oil level checks on the pump body.

Specifications

Key Specifications

Part No XW30.25
Pump Type 3-piston alternating volumetric
RPM 1450 (ideal for electric motors)
Flow Rate 30 litres/minute
Max Pressure 250 Bar / 3600 PSI
Shaft Type 24mm solid shaft
Pump Body Die-cast aluminium alloy
Covers Rear cover with oil drain outlet and oil sight glass; dipstick oil level cap on pump body
Piston Drive Crank-connecting rod mechanism
Pump Shaft Pressed high-strength steel
Power Required 19 HP at full pressure

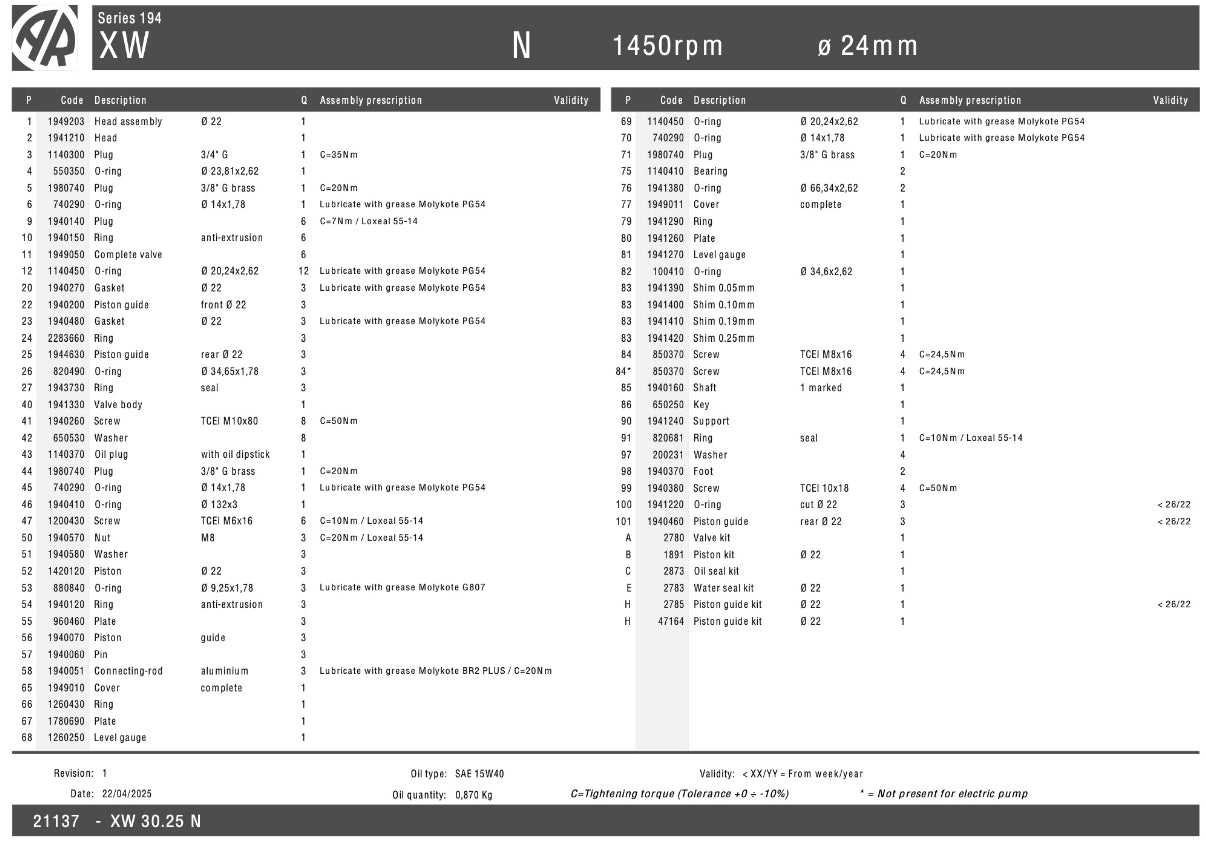

Popular Spares
Valve Kit Kit 2780
Water Seals Kit 2783
Oil Seals Kit 2873
Pistons (x3) Kit 1891

PDF Downloads

Downloads
