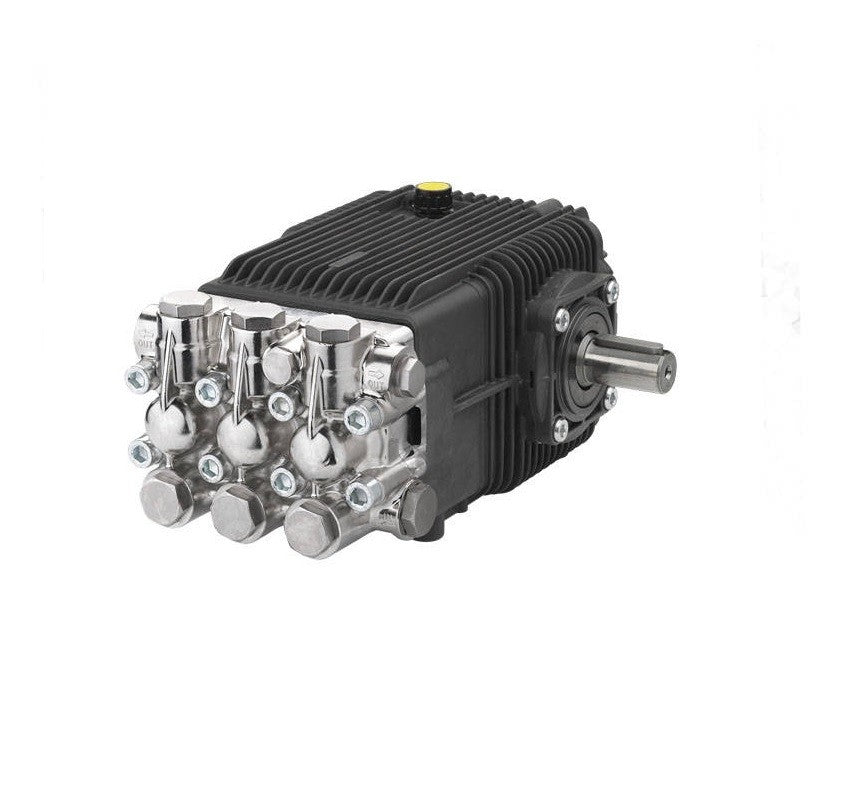

RW 15.20 Annovi Reverberi Solid Shaft Pump – 15 l/min @ 200 Bar, 24mm Shaft, 1450 RPM

The RW 15.20 Annovi Reverberi solid shaft pump is a direct replacement for the Interpump WS201, designed for industrial cleaning units and pressure systems. Running at 1450 RPM, it is ideal for coupling with electric motors via direct connection or flexible joint.

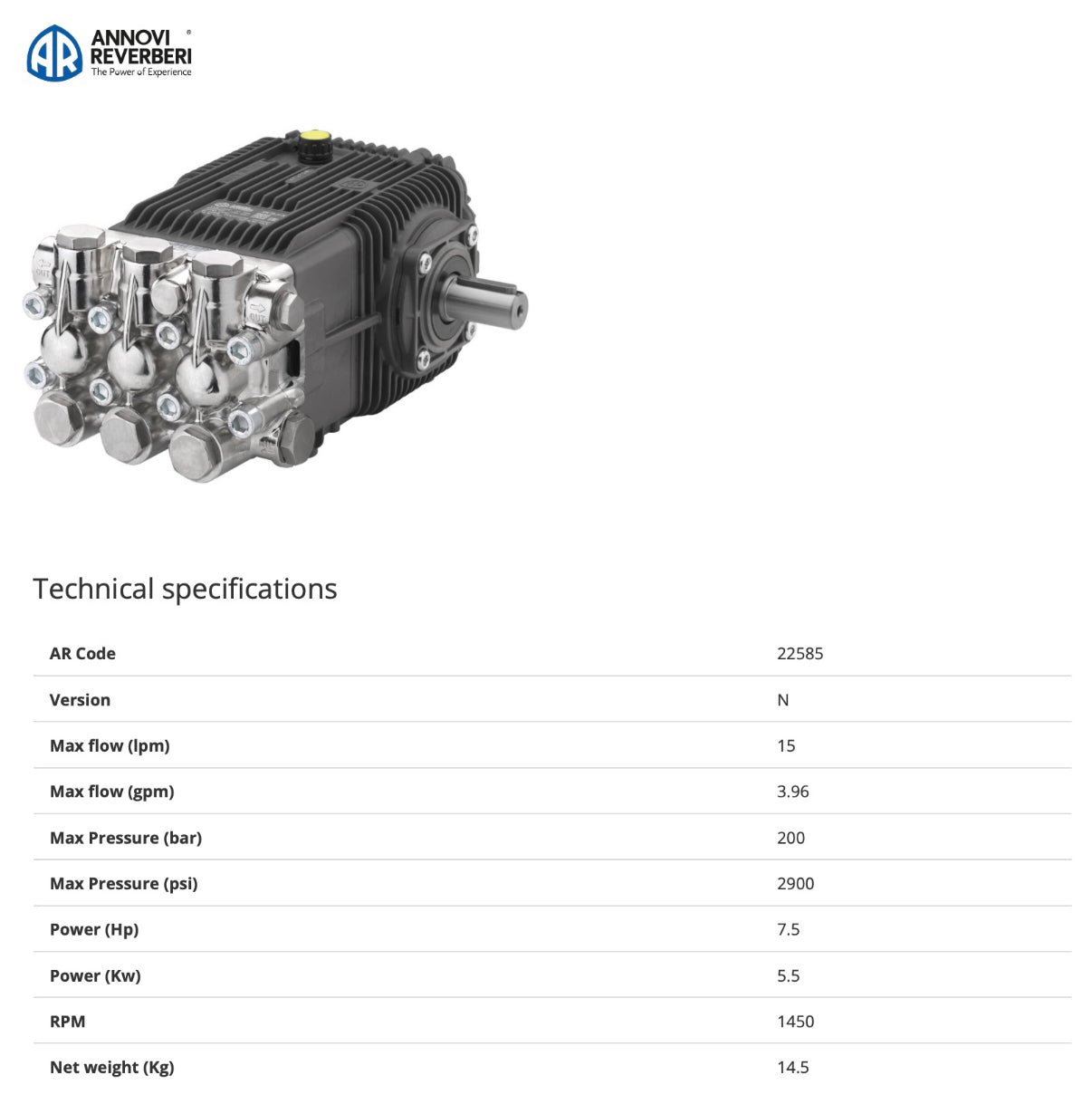

This pump delivers 15 litres per minute at 200 Bar (2900 PSI) and requires 7.5 HP to operate at full capacity. It features a 3-piston alternating volumetric design, driven by a crank-connecting rod mechanism for smooth, efficient performance.

The die-cast aluminium alloy body and cover are built for durability. A side oil sight glass and rear oil drain outletallow easy maintenance checks. The pressed high-strength steel shaft, combined with oversized friction bearings and zinc-aluminium alloy connecting rods, ensures a long working life.

It uses one-piece ceramic pistons inside a pressed brass head with a double gasket sealing system, designed to handle long hours and demanding applications. Plug-type valve fittings enable quicker service access, and a range of compatible unloader valves and accessories can be added to suit your system.
